Asymmetric Directional Resolution

One of the features of the UDCT is that it is able to specify different resolutions for different quadrants of the Fourier space. This allows one to target finer details with more division, and coarser scales with fewer.

# sphinx_gallery_thumbnail_number = 2

from __future__ import annotations

import matplotlib.pyplot as plt
import numpy as np
from matplotlib import ticker
from matplotlib.cm import ScalarMappable
from matplotlib.colorbar import ColorbarBase
from matplotlib.colors import Normalize, to_rgba
from matplotlib.gridspec import GridSpec
from numpy.fft import fftfreq, fftshift

from curvelets.numpy import UDCT

Symmetric and Asymmetric UDCTs

x = np.zeros((300, 200))
C_sym = UDCT(x.shape, num_scales=3, wedges_per_direction=3)
C_asymh = UDCT(shape=x.shape, angular_wedges_config=np.array([[3, 6], [6, 12]]))
C_asymv = UDCT(shape=x.shape, angular_wedges_config=np.array([[6, 3], [12, 6]]))

Plotting Functions

Created Colored image from Windows

def color_windows(
    C,
    thresh=0.8,
    cmaps_dir: tuple[str, str] = ("Wistia", "winter_r"),
    color_low: str | tuple[int, ...] = "w",
    color_bg: str | tuple[int, ...] = (0, 0, 0, 1),
):
    wins = C.windows

    def create_mask(wedge: np.ndarray) -> np.ndarray:
        wedge = C._from_sparse(wedge)
        wedge = fftshift(wedge)
        return wedge >= thresh

    def assign_rgba_to_mask(
        mask_index: np.ndarray, mask_target: np.ndarray, rgb_a: tuple[int, ...]
    ) -> None:
        mask_target[..., 0][mask_index] = rgb_a[0]
        mask_target[..., 1][mask_index] = rgb_a[1]
        mask_target[..., 2][mask_index] = rgb_a[2]
        if len(rgb_a) > 3:
            mask_target[..., 3][mask_index] = rgb_a[3]

    # Scale 0 wedge
    mask = create_mask(wins[0][0][0])

    # Full colored mask
    rgb_a = to_rgba(color_bg) if isinstance(color_bg, str) else color_bg
    mask_rgba = np.zeros((*mask.shape, 4), dtype=float)
    assign_rgba_to_mask(Ellipsis, mask_rgba, rgb_a)

    # Set scale 0 wedges in full mask
    rgb_a = to_rgba(color_low) if isinstance(color_low, str) else color_low
    assign_rgba_to_mask(mask, mask_rgba, rgb_a)

    # Rest of scales
    for iscale in range(1, len(wins)):
        ndir = len(wins[iscale])
        assert ndir == 2
        for idir in range(ndir):
            nwedges = len(wins[iscale][idir])

            cmap = plt.get_cmap(cmaps_dir[idir])
            norm = Normalize(vmin=0, vmax=nwedges - 1)
            scalarMap = ScalarMappable(norm=norm, cmap=cmap)

            for iwedge in range(nwedges):
                mask = create_mask(wins[iscale][idir][iwedge])
                mask += np.flip(mask, axis=(0, 1))
                rgb_a = scalarMap.to_rgba(iwedge)
                assign_rgba_to_mask(mask, mask_rgba, rgb_a)
    return mask_rgba

Created Disk from Windows

def plot_disk(
    C,
    ax,
    cmaps_dir: tuple[str, str] = ("Wistia", "winter_r"),
    color_low: str | tuple[int, ...] = "w",
    color_bg: str | tuple[int, ...] = (0, 0, 0, 1),
):
    deg_360 = 2 * np.pi
    deg_135 = np.pi * 3 / 4
    deg_n45 = -np.pi / 4
    deg_90 = np.pi / 2

    ax.yaxis.set_visible(False)
    ax.grid(False)
    ax.set_facecolor(color_bg)

    nscales = len(C.windows)
    wedge_height = 1 / (nscales - 1)
    ax.bar(x=0, height=wedge_height, width=deg_360, bottom=0, color=color_low)
    for iscale, s in enumerate(C.windows[1:], start=1):
        ndir = len(s)
        assert ndir == 2
        for idir, d in enumerate(s):
            nwedges = len(d)
            angles_per_wedge = deg_90 / nwedges
            pm = (-1) ** idir  # CCW for idir == 0, CC otherwise
            cmap = plt.get_cmap(cmaps_dir[idir])
            norm = Normalize(vmin=0, vmax=nwedges - 1)
            scalarMap = ScalarMappable(norm=norm, cmap=cmap)
            for iwedge in range(nwedges):
                color = scalarMap.to_rgba(iwedge)
                for offset in [deg_135, deg_n45]:  # top-left, bottom-right
                    wedge_x = offset + pm * angles_per_wedge * (0.5 + iwedge)
                    wedge_width = angles_per_wedge
                    wedge_bottom = iscale * wedge_height
                    ax.bar(
                        x=wedge_x,
                        height=wedge_height,
                        width=wedge_width,
                        bottom=wedge_bottom,
                        color=color,
                    )

    linewidth = 0.05 * wedge_height
    linecolor = color_bg
    # Plot after so they are on top
    for iscale, s in enumerate(C.windows):
        # Scale separators
        ax.bar(
            x=0,
            height=linewidth,
            width=deg_360,
            bottom=(iscale + 1 - linewidth / 2) / (nscales - 1),
            color=linecolor,
        )
        if iscale == 0:
            continue
        # Wedge separators
        for idir, d in enumerate(s):
            nwedges = len(d)
            angles_per_wedge = deg_90 / nwedges
            pm = (-1) ** idir
            for iwedge in range(nwedges):
                for offset in [deg_135, deg_n45]:  # top-left, bottom-right
                    wedge_x = offset + pm * angles_per_wedge * (0.5 + iwedge)
                    wedge_width = angles_per_wedge
                    wedge_bottom = iscale * wedge_height
                    ax.bar(
                        x=wedge_x - wedge_width / 2,
                        height=wedge_height,
                        width=linewidth,
                        bottom=wedge_bottom,
                        color=linecolor,
                    )

Create Colorbars for Directions

def plot_colorbars(
    windows,
    axs,
    cmaps: tuple[str, str] = ("Wistia", "winter_r"),
    orientation: str = "horizontal",
):
    for idir, cax in enumerate(axs):
        max_wedges = max(len(d) for s in windows for d in s)
        cmap = plt.get_cmap(cmaps[idir], max_wedges)
        ColorbarBase(cax, cmap=cmap, orientation=orientation)
        xyaxis = cax.yaxis if orientation == "vertical" else cax.xaxis
        xyaxis.set_major_locator(ticker.MultipleLocator(1))
        xyaxis.set_major_formatter(
            ticker.FuncFormatter(
                lambda x, _: "Low" if int(round(2 * x)) == 0 else "High"
            )
        )
        cax.set_title(f"Dir {idir}")

Plot Support of UDCTs in the Fourier Domain

cmaps = ("Wistia", "winter_r")
color_low = "xkcd:salmon"
color_bg = "w"
nx, ny = x.shape
kx = fftshift(fftfreq(nx))
ky = fftshift(fftfreq(ny))

C: UDCT

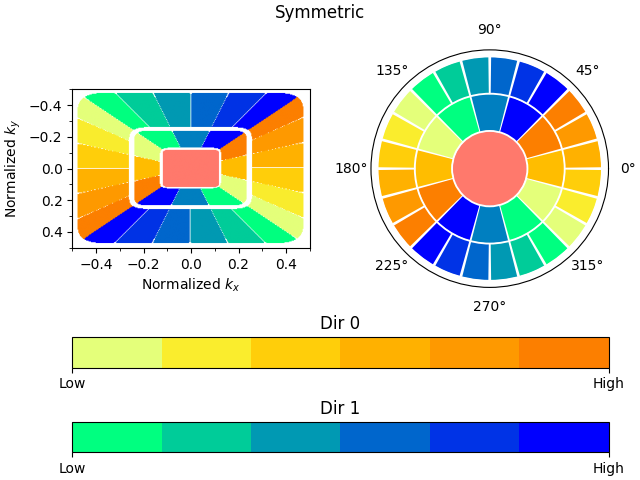

Symmetric

title = "Symmetric"
C = C_sym
colored_wins = color_windows(C, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)

fig = plt.figure(layout="constrained")
fig.suptitle(title)
gs = GridSpec(3, 2, figure=fig, height_ratios=[8, 1, 1])
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[0, 1], projection="polar")
ax3 = fig.add_subplot(gs[1, :])
ax4 = fig.add_subplot(gs[2, :])
ax1.imshow(
    colored_wins.swapaxes(0, 1), extent=[kx[0], kx[-1], ky[-1], ky[0]], aspect=ny / nx
)
ax1.xaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.yaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.set(
    xlim=[kx[0], -kx[0]],
    ylim=[-ky[0], ky[0]],
    xlabel="Normalized $k_x$",
    ylabel="Normalized $k_y$",
)
plot_colorbars(C.windows, [ax3, ax4], cmaps=cmaps)
plot_disk(C, ax2, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)

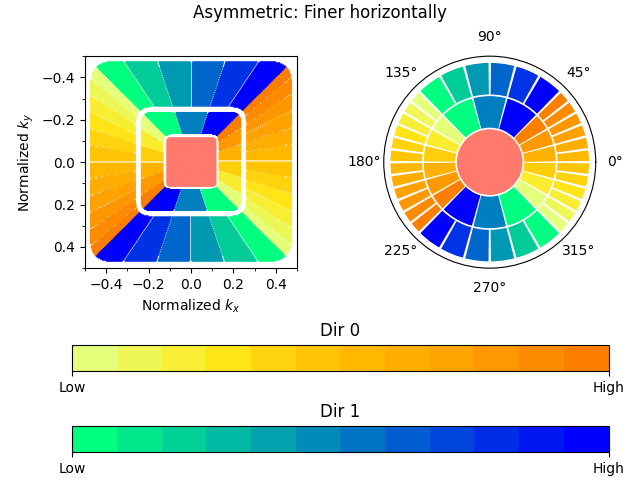

Asymmetric: Finer horizontally

title = "Asymmetric: Finer horizontally"
C = C_asymh
colored_wins = color_windows(C, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)

fig = plt.figure(layout="constrained")
fig.suptitle(title)
gs = GridSpec(3, 2, figure=fig, height_ratios=[8, 1, 1])
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[0, 1], projection="polar")
ax3 = fig.add_subplot(gs[1, :])
ax4 = fig.add_subplot(gs[2, :])
ax1.imshow(colored_wins.swapaxes(0, 1), extent=[kx[0], kx[-1], ky[-1], ky[0]])
ax1.xaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.yaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.set(
    xlim=[kx[0], -kx[0]],
    ylim=[-ky[0], ky[0]],
    xlabel="Normalized $k_x$",
    ylabel="Normalized $k_y$",
)
plot_colorbars(C.windows, [ax3, ax4], cmaps=cmaps)
plot_disk(C, ax2, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)

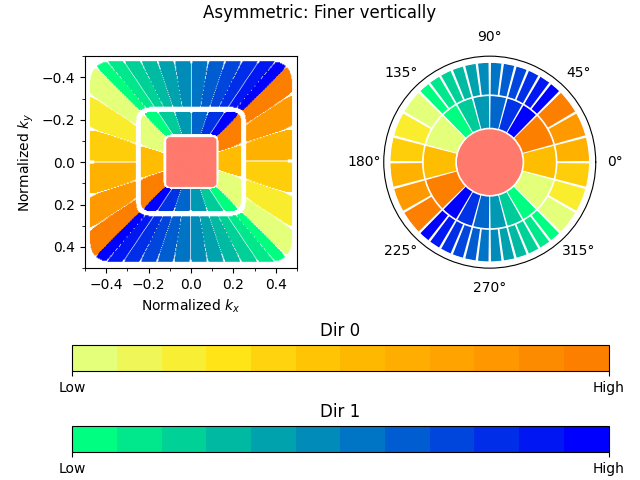

Asymmetric: Finer vertically

title = "Asymmetric: Finer vertically"
C = C_asymv
colored_wins = color_windows(C, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)

fig = plt.figure(layout="constrained")
fig.suptitle(title)
gs = GridSpec(3, 2, figure=fig, height_ratios=[8, 1, 1])
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[0, 1], projection="polar")
ax3 = fig.add_subplot(gs[1, :])
ax4 = fig.add_subplot(gs[2, :])
ax1.imshow(colored_wins.swapaxes(0, 1), extent=[kx[0], kx[-1], ky[-1], ky[0]])
ax1.xaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.yaxis.set_minor_locator(ticker.MultipleLocator(0.1))
ax1.set(
    xlim=[kx[0], -kx[0]],
    ylim=[-ky[0], ky[0]],
    xlabel="Normalized $k_x$",
    ylabel="Normalized $k_y$",
)
plot_colorbars(C.windows, [ax3, ax4], cmaps=cmaps)
plot_disk(C, ax2, cmaps_dir=cmaps, color_low=color_low, color_bg=color_bg)
